My Hybrid State-of-Charge Bar Jumps From Full to Empty in Minutes

When your hybrid's state-of-charge bar climbs to full and then collapses to one or two bars within a few minutes of driving, the pack is almost always out of balance — one or two weak blocks are dragging the whole estimate around. The gauge isn't broken. It's reporting an estimate that has become unreliable because the cells inside the pack no longer behave like a matched set.

Why the gauge swings before any light comes on

Your hybrid battery ECU doesn't measure charge directly. It can't. It infers state of charge from pack voltage, from current flowing in and out, and from temperature, then blends those inputs into a single number the dash renders as bars or a percentage.

That works fine when every module in the pack has similar capacity and similar internal resistance. When one block is weak, its voltage sags hard the moment you ask for electric assist and springs back up the second the load stops. The ECU sees the whole pack voltage move sharply and adjusts its estimate to match.

So you get the classic pattern: full bars coasting down a grade, two bars after one hard merge onto the 101, back to six bars sitting at a light. Nothing in the pack actually gained or lost that much energy. The measurement stick got shorter.

What the swing usually means about the pack

A healthy Toyota or Lexus NiMH pack holds every block within roughly 0.2 volts of every other block under load. Imbalance shows up as spread — a delta between the strongest and weakest block that keeps widening.

The symptoms track that spread pretty closely:

| What you see | What's usually happening inside | |---|---| | Gauge drifts slowly, mileage down a few MPG | Mild capacity loss, blocks still fairly matched | | Gauge jumps two or three bars at a time | Noticeable spread; one or two blocks weaker than the rest | | Full to empty and back within minutes | Wide spread; weakest block sagging badly under load | | Gauge sticks at empty, engine runs constantly | Battery ECU has stopped trusting the pack and limited its use | | Gauge erratic plus a warning light | Threshold crossed, code stored |

The frustrating part for owners is the gap in the middle. A pack can swing wildly for weeks or months before it sets a code, because Toyota's thresholds for P0A80 and the P3011 through P3024 block-weak codes are deliberately conservative. The car will tolerate a lot of imbalance before it complains out loud.

That means erratic gauge behavior is genuinely useful information. It's an early symptom, not a late one.

What a scan shows that the dash cannot

The dash gives you one number. A proper hybrid battery scan gives you the numbers behind it.

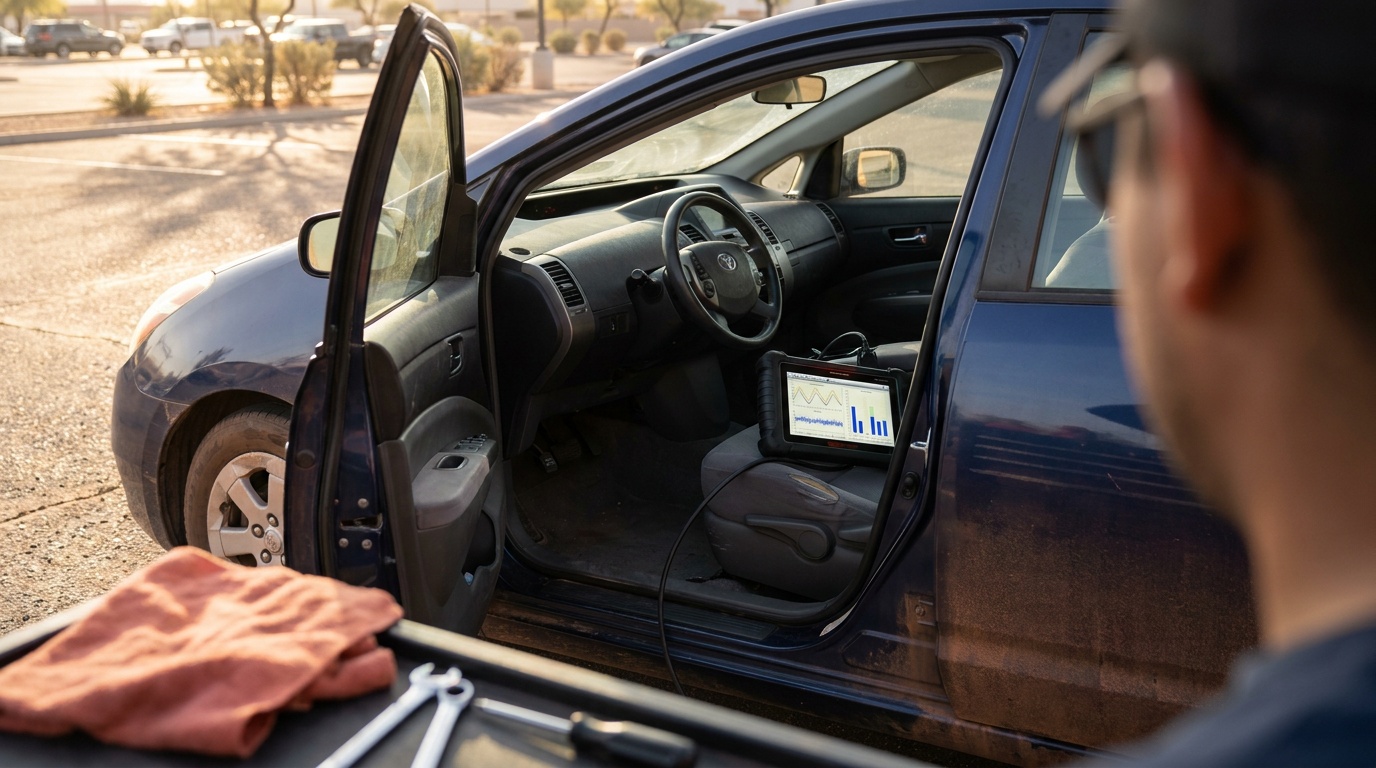

On a Gen 2 or Gen 3 Prius, the pack reports 14 block voltages individually. A hybrid battery diagnostic reads all of them live while the car charges and discharges, which lets us see:

• Block delta under load. The real measure of imbalance. Watching one block drop while the other 13 hold steady tells us exactly which section is failing.
• Recovery behavior. How fast a sagging block bounces back after the load ends. Slow recovery points to high internal resistance, not just low capacity.
• Temperature spread across the pack. In Arizona this matters more than almost anywhere. Blocks near the middle of the pack run hotter, age faster, and go weak first.
• Cooling fan operation. A fan choked with dust and pet hair raises pack temperature across the board and accelerates the imbalance that's already there.
• Stored and pending codes. Including ones that haven't lit the dash yet, like an early P0A7F deterioration code.

None of that is visible from the driver's seat. You can watch the bars all day and still not know whether you're looking at two tired blocks or a pack that's uniformly worn out — and those two situations lead to different repairs.

The Arizona factor

Heat is the single biggest driver of NiMH imbalance, and Phoenix summers are relentless on a battery pack that sits in a closed cabin at 115 degrees. Packs here commonly develop measurable spread years earlier than the same car would in a mild climate.

Parking outdoors all day, short trips that never let the cooling system catch up, and a blocked intake vent behind the rear seat all compound it. If your car lives in Phoenix, Mesa, or anywhere in the West Valley, a gauge that started swinging this summer is behaving exactly the way the climate would predict.

What the repair usually looks like

Once we know the block-level numbers, the options are straightforward.

| Approach | Typical first-repair range | When it fits | |---|---|---| | Reconditioning | $500 – $900 | A handful of weak blocks, rest of pack still strong | | Replacement | $1,000 – $2,000 | Broad wear, high internal resistance across many blocks | | 12V battery | $100 – $400 | Symptoms trace to the 12V system, not the hybrid pack |

Most installs take about 30 minutes, and we do the work wherever the car is parked — driveway, office lot, apartment complex.

One more thing worth ruling out: a weak 12V battery can cause its own set of strange dash behavior, including flickering displays and odd system messages that get blamed on the hybrid pack. If you're not sure which one you're dealing with, the difference between a 12V and a hybrid battery problem is quick to establish with a scan.

And if the gauge swing has already turned into a warning light, the warning light and code index will tell you what your specific code points to before anyone touches the car.

If your gauge is jumping, book a free mobile diagnostic or call 623-323-0737. We come to you, read every block in the pack, and tell you what the numbers actually say.
