Clunking and Surging on Acceleration in a Hybrid: Battery or Transmission?

If your hybrid surges — power comes on, drops off, comes back — the hybrid battery is the most likely cause. If you hear a distinct mechanical clunk or thunk, that is usually not the battery and usually not the transmission either, because most hybrids don't have a shifting transmission to clunk.

Those two symptoms feel like one problem from the driver's seat. They're almost never the same problem. Sorting them takes about ten minutes of paying attention on your normal commute.

Why "transmission" is usually the wrong suspect

Toyota, Lexus, and most Ford hybrids use a power-split eCVT. Inside is a planetary gearset with two electric motor-generators. There are no clutch packs and no gear changes. Nothing shifts, so nothing shift-shocks.

What feels like a shift in these cars is the gas engine starting or shutting off. The engine spins up, drops in, and takes over — and that transition can produce a shudder, a rise in noise, or a soft bump you feel through the floor. Honda's older IMA setup and some Hyundai and Kia hybrids do use a conventional-style transmission with a clutch, so those can genuinely shift roughly. Still, the loud single clunk in a Prius or a RAV4 Hybrid is more often a motor mount, a sway bar bushing, an exhaust heat shield, or a CV joint than anything inside the drivetrain.

Surging is different. Surging is a power delivery problem, and in a hybrid the battery is the thing delivering power.

Sort your symptom first

| What you feel or hear | Most likely source | What to check | |---|---|---| | Power fades in and out on a freeway on-ramp, engine RPM stays high | Hybrid battery losing capacity under load | Energy screen: state-of-charge bars falling fast | | Hard clunk once, when you lift off or reapply the throttle | Motor mount, driveshaft, suspension bushing | Does it happen at a standstill in Park? | | Rattle only under acceleration, metallic, from underneath | Heat shield or exhaust hanger | Reach under (cold car) and shake the shields | | Shudder as the gas engine kicks in, then smooths out | Normal engine-start transition, or engine misfire | Does it repeat every single start, or only cold? | | Car hesitates, then lurches, RPM climbs with no speed | Failing pack, or a clogged EGR system on 2010–2015 Prius | Scan for stored codes | | Surge plus warning lights | Hybrid battery fault stored | Warning light and code index | | Loss of power in reverse specifically | Battery or drive motor — reverse is electric-only | Note how far the car will back up |

That last row is the most useful free test in this whole article. In a power-split hybrid, reverse is driven by the electric motor. The gas engine cannot push the car backward. If the car struggles in reverse, up a driveway, or won't back out of a sloped garage without shuddering, you are looking at an electrical problem, not a mechanical one.

The ten-minute self-check

Do this on a road you drive every day, in daylight, without passengers talking to you.

1. Watch the state-of-charge bars. Pull up the energy monitor or the battery gauge. Accelerate normally up to about 45 mph. A healthy pack drains gradually and refills on the next coast or braking event. A pack that's failing drops from full to nearly empty in a few seconds, then refills just as fast. That rapid swing is the single clearest sign of lost capacity.

2. Note the temperature. Does the surging show up on your first drive of the morning, or after twenty minutes in Phoenix afternoon traffic? Heat raises internal resistance. Arizona packs commonly drive fine at 7am and surge badly at 4pm. That pattern points at the battery hard.

3. Test the clunk at a standstill. Put the car in Park, foot on the brake, and blip the throttle. If the clunk reproduces while stationary, it's a mount or a driveline joint, not power delivery. If it only happens while the car is moving and loaded, keep the drivetrain on the list.

4. Check for a fan you can hear. The hybrid battery cooling fan usually draws air from a vent near the rear seat or in the cargo area. On a hot day under load, you should hear it. Silence, or a vent packed with dust and pet hair, means the pack has been running hotter than designed — which is how Arizona packs age faster than the same car in a mild climate.

5. Get the codes read. Surging with no stored code and surging with a stored code are two different conversations.

The codes that matter

P0A80 — Replace Hybrid Battery Pack is the definitive one. P0A7F, hybrid battery pack deterioration means the computer has measured capacity loss. The block-specific codes — P3011 through P3024, "battery block becomes weak" — tell you which section of the pack is dragging the rest down, which is exactly the information that determines whether reconditioning is realistic or whether replacement is the honest answer.

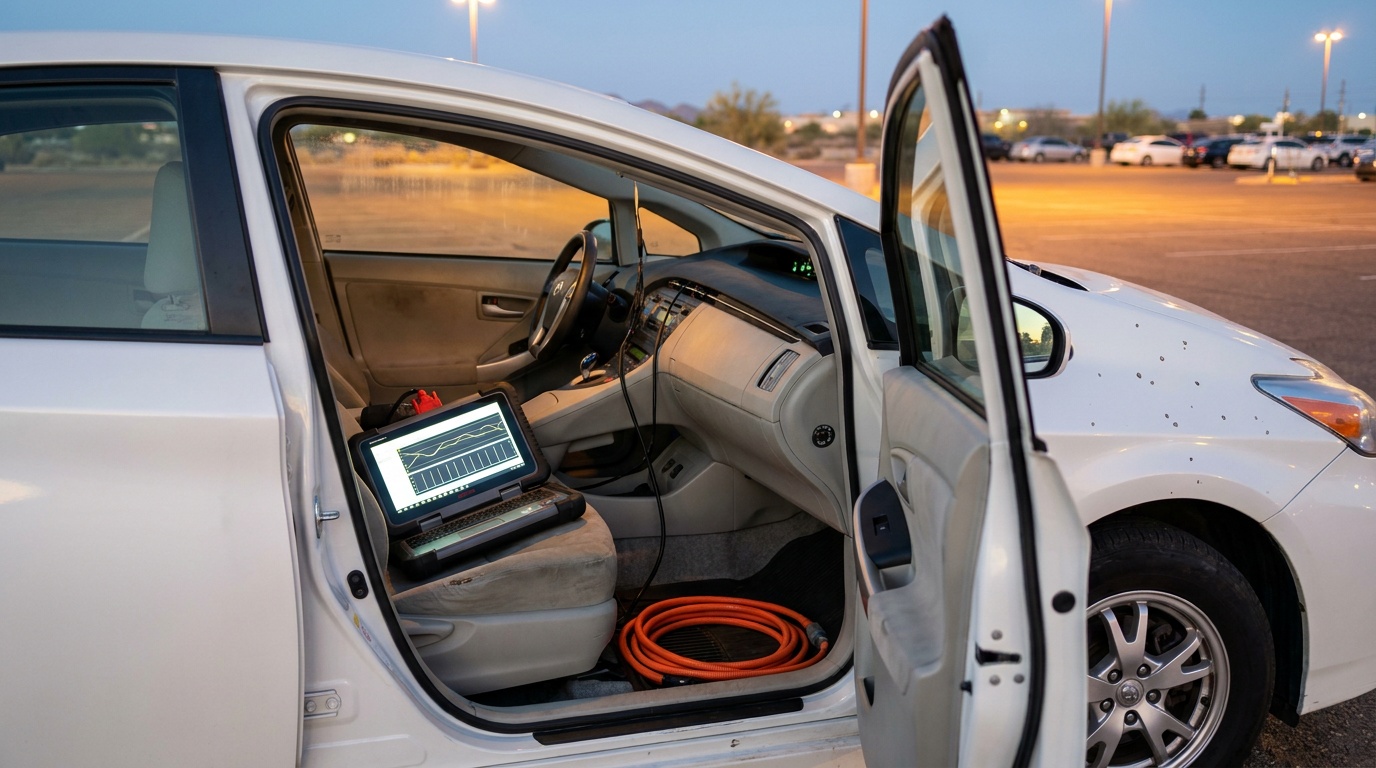

A surge with no battery code at all can still be the battery, caught early. It can also be an engine problem wearing hybrid clothing. On third-generation Prius especially, a clogged EGR passage causes hesitation, rough running, and misfire codes that owners read as battery failure. A hybrid system diagnostic reads the whole system — pack block voltages, engine data, motor and inverter — instead of guessing from the symptom.

What each answer costs

If the pack has a few weak blocks and the rest measure well, reconditioning typically runs $500 to $900 for a first repair. If capacity is gone across the pack, replacement typically runs $1,000 to $2,000. A weak 12V battery — which causes its own strange electrical behavior, though not usually surging under acceleration — runs $100 to $400. Full ranges are on the pricing page. Most installs take about 30 minutes, and we come to you anywhere we cover across Arizona.

If you're getting the surge, get the numbers before you spend anything. The diagnostic is free, we come to your driveway or your workplace, and you'll know which of these two problems you actually have — book a free mobile diagnostic or call 623-323-0737.
